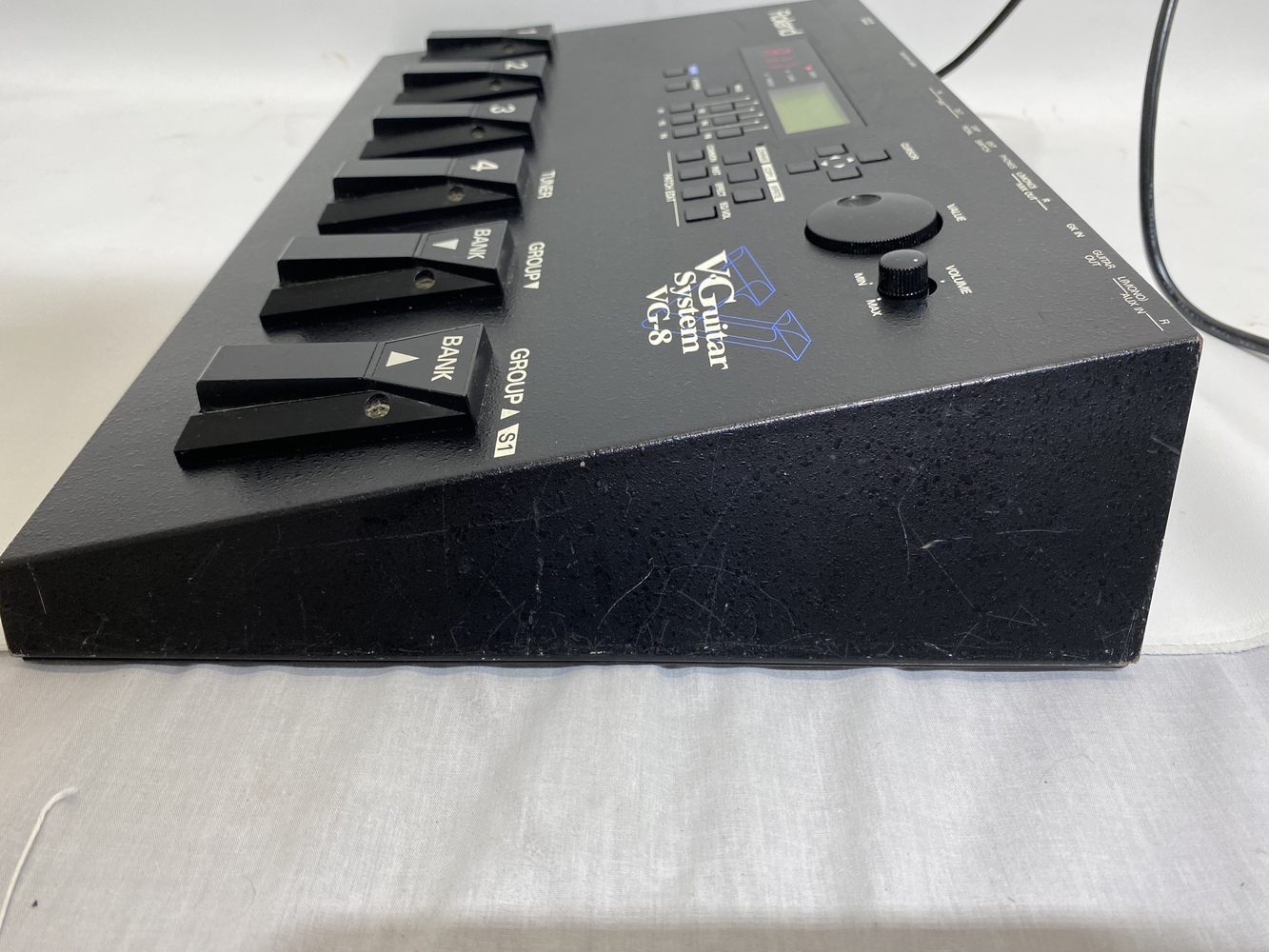

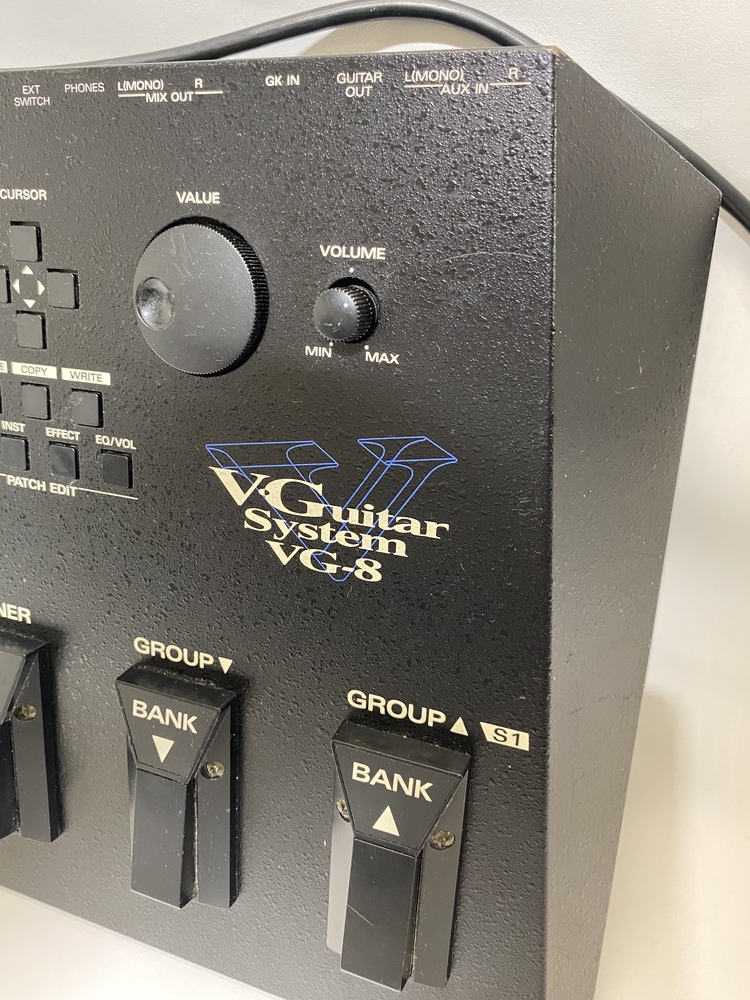

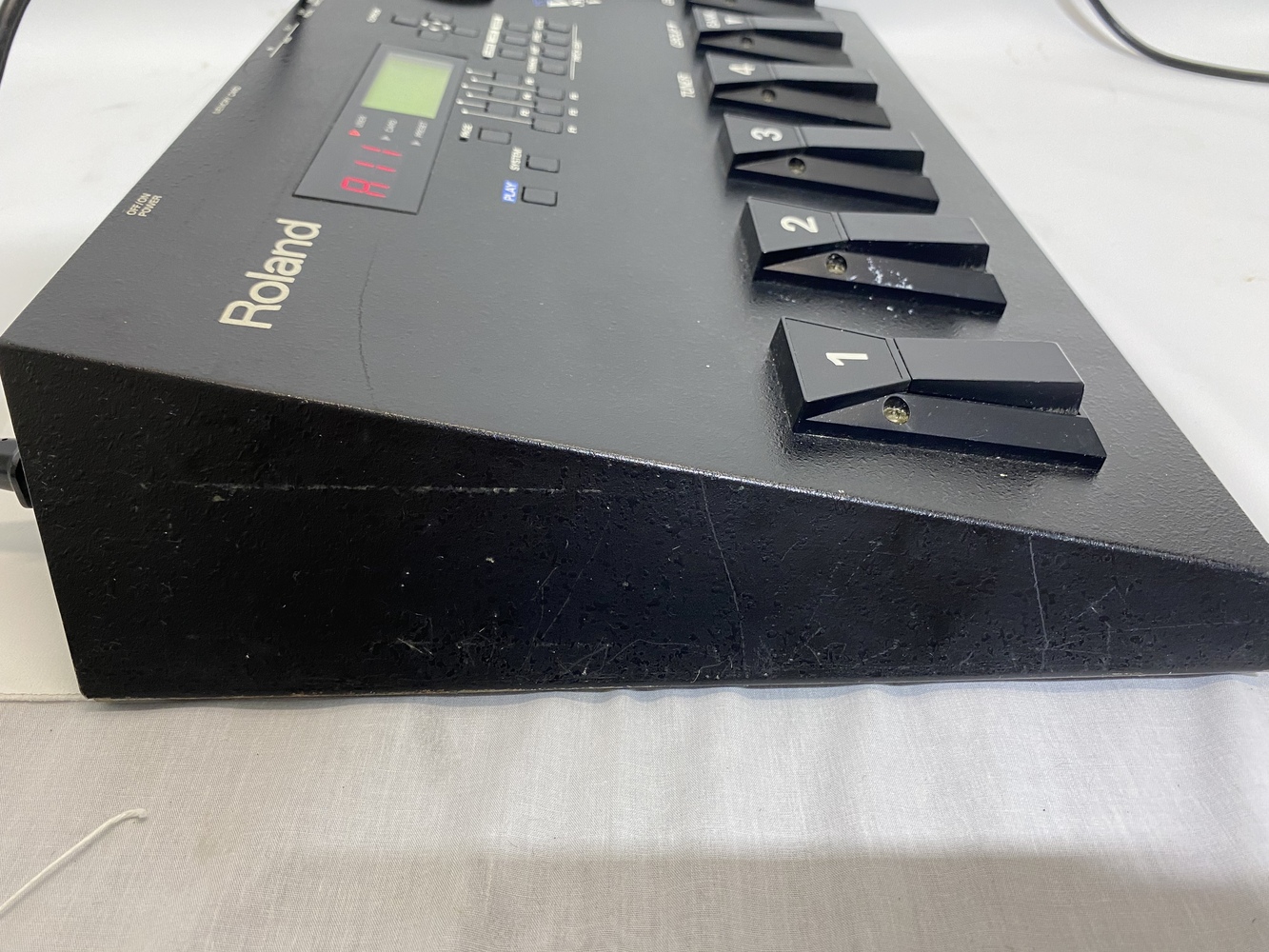

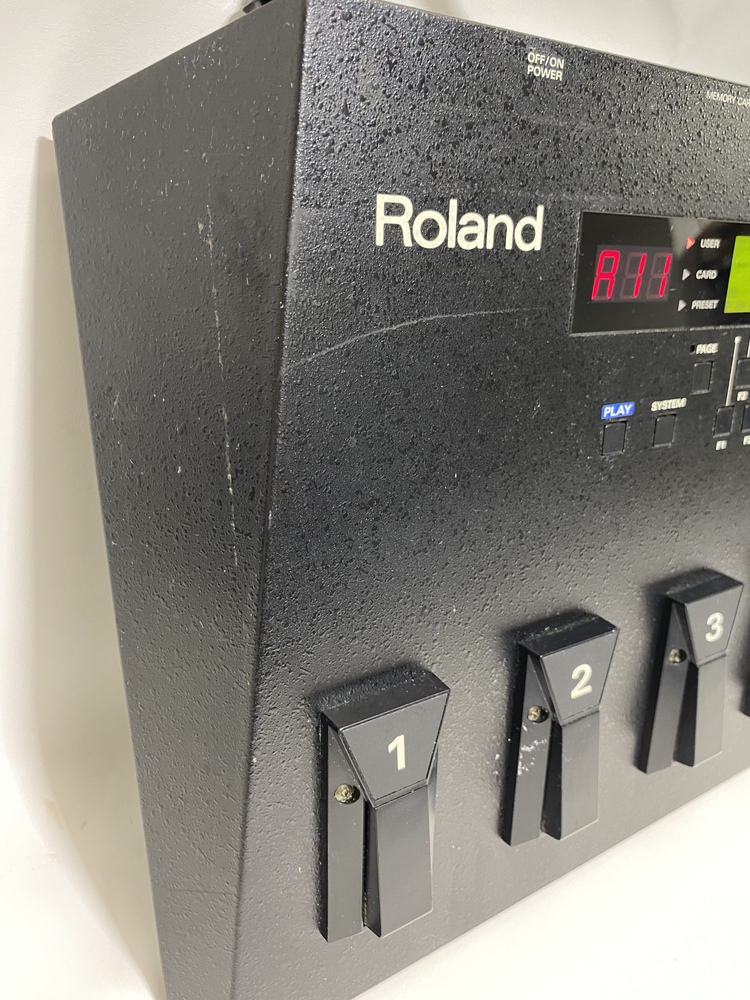

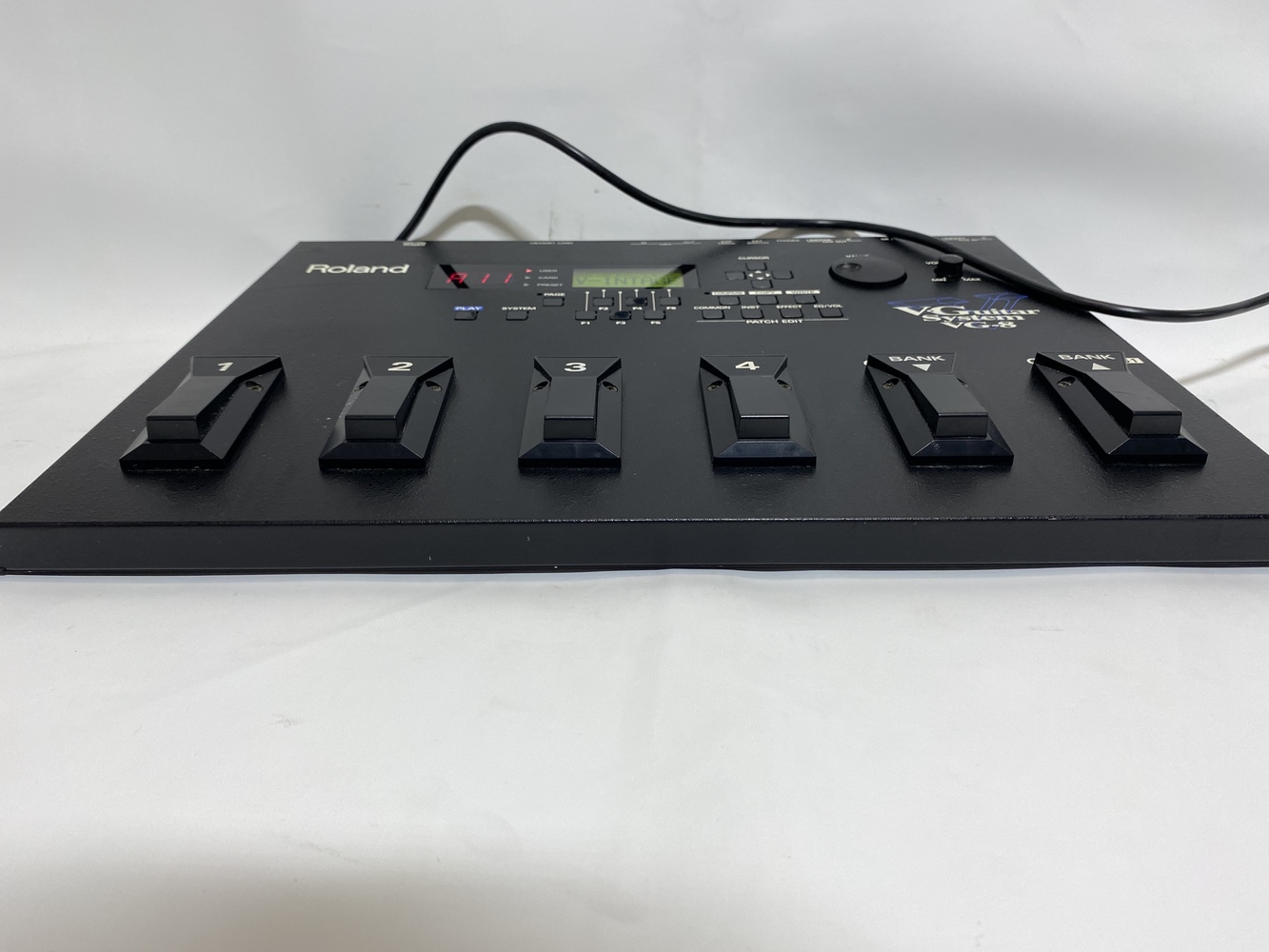

Roland Vg-8 GUITAR EFFECTS BOARD W/Cord

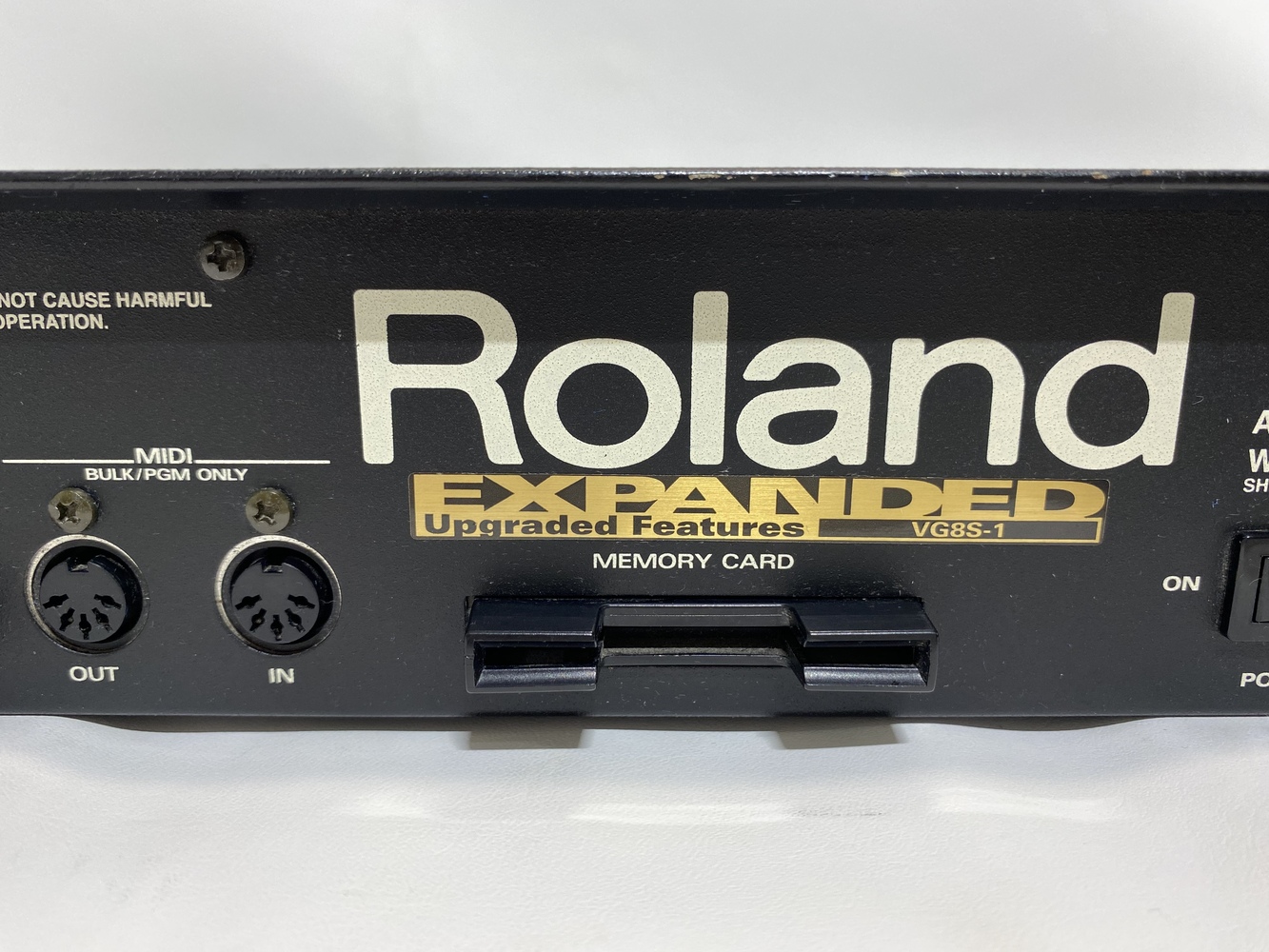

• Patches: 64 preset, 64 user, with additional space for 64 patches on a compatible memory card.

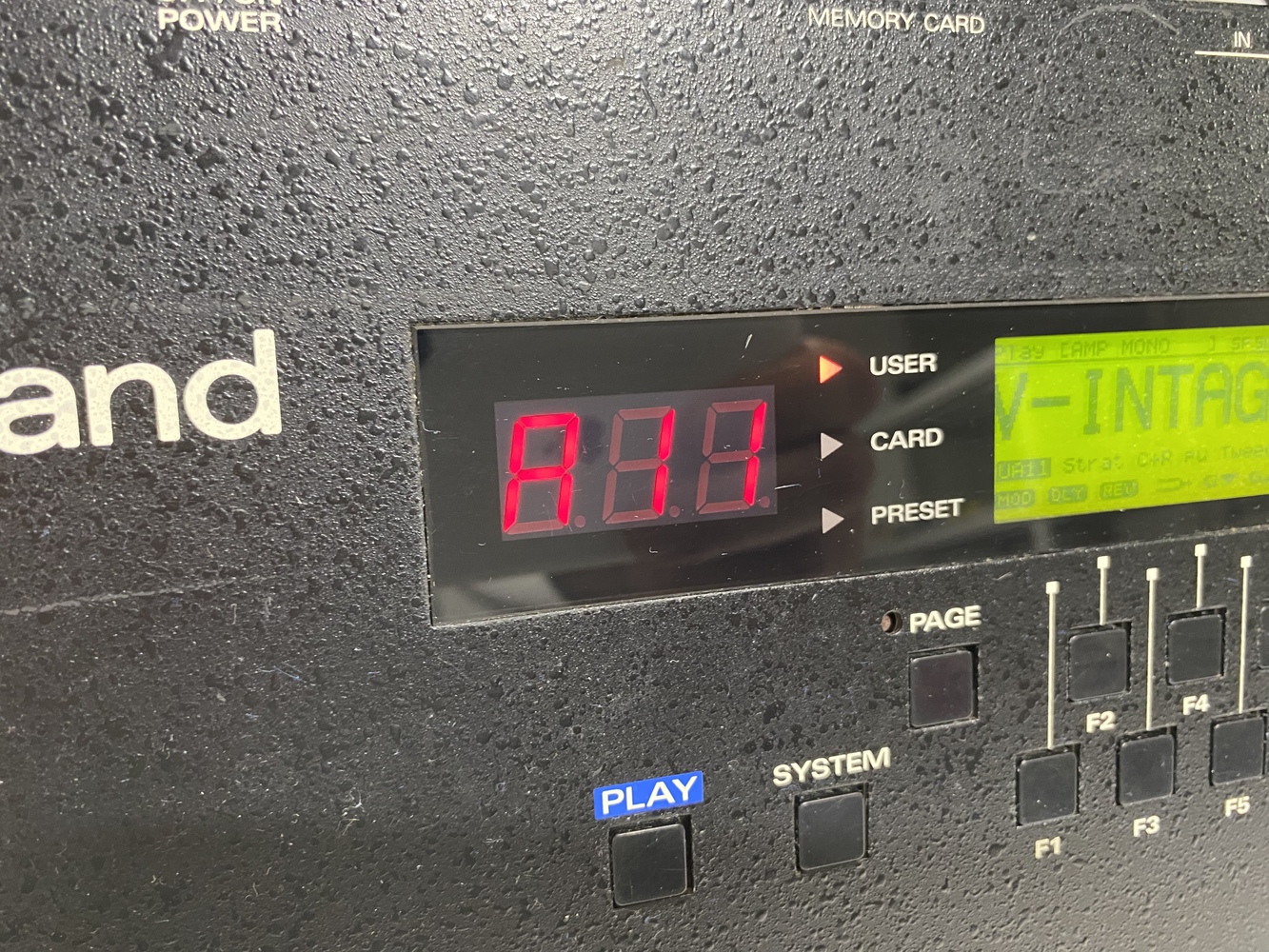

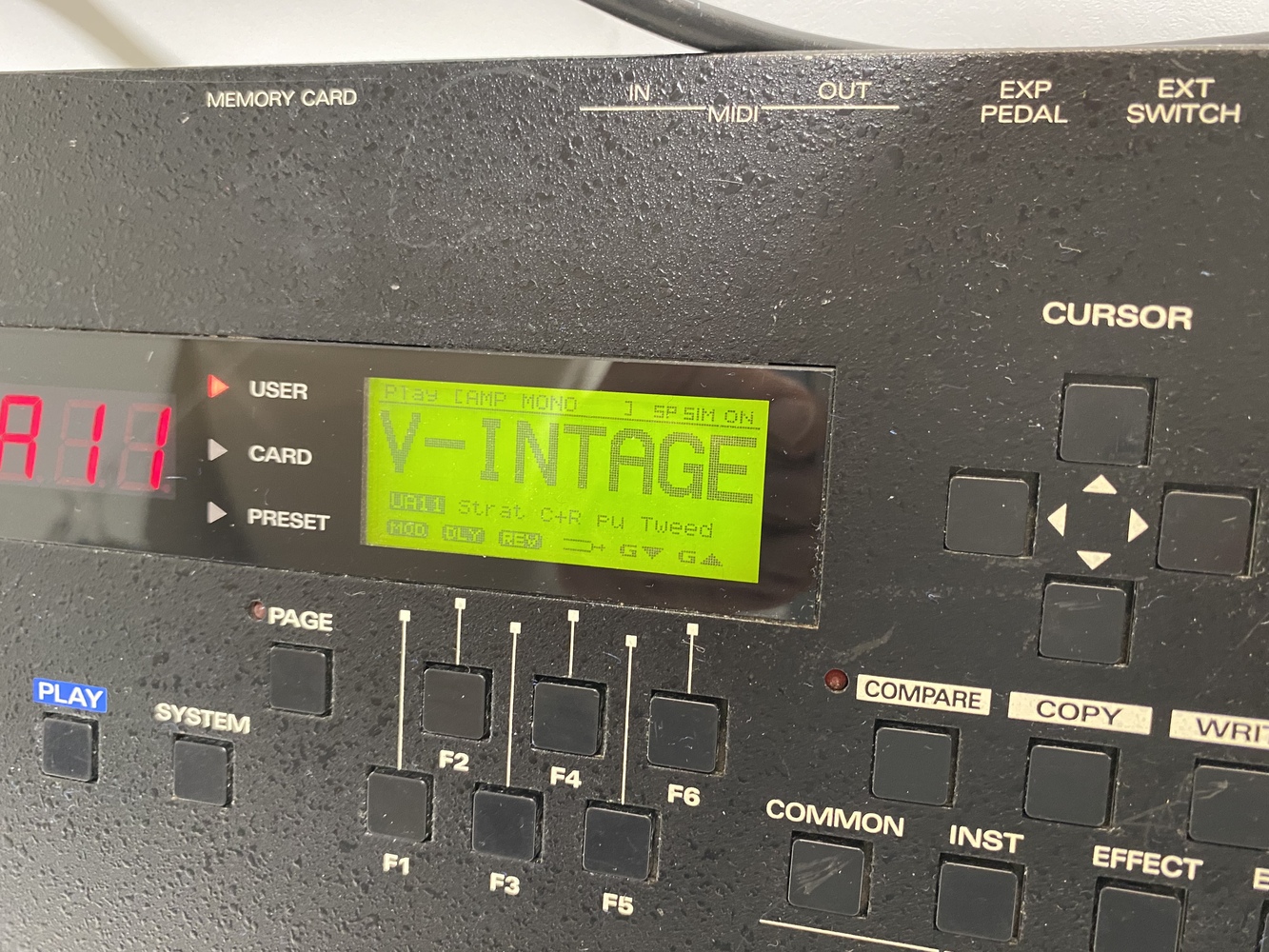

• Display: 3-digit LED and a 160 x 64 dot backlit LCD.
• Technoloy: Composite Object Sound Modeling (COSM).

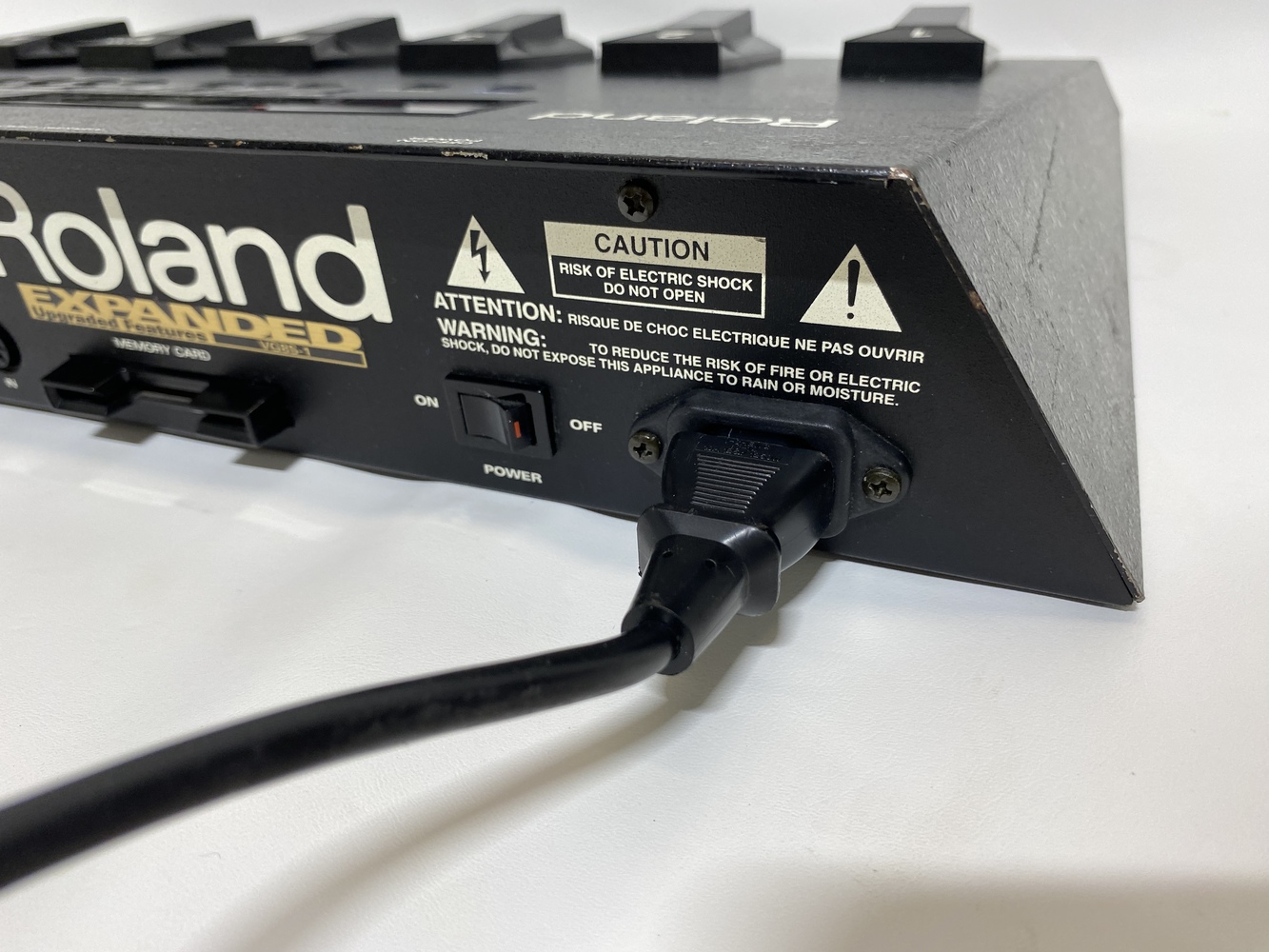

• Power: AC 117 V, AC 230 V, or AC 240 V (15W).
• Dimensions: 504 (W) x 293 (D) x 76 (H) mm (19-7/8" x 11-5/8" x 3").
• Weight: 4.7 kg (10 lbs 6 oz).

Audio & Effects

• Efects: Modulation, delay, reverb, and a parametric equalizer (Hi, Mid, Low).
• Input Level: AUX In: -10 dBm.
• Input Impedance: AUX In: 8 kΩ.

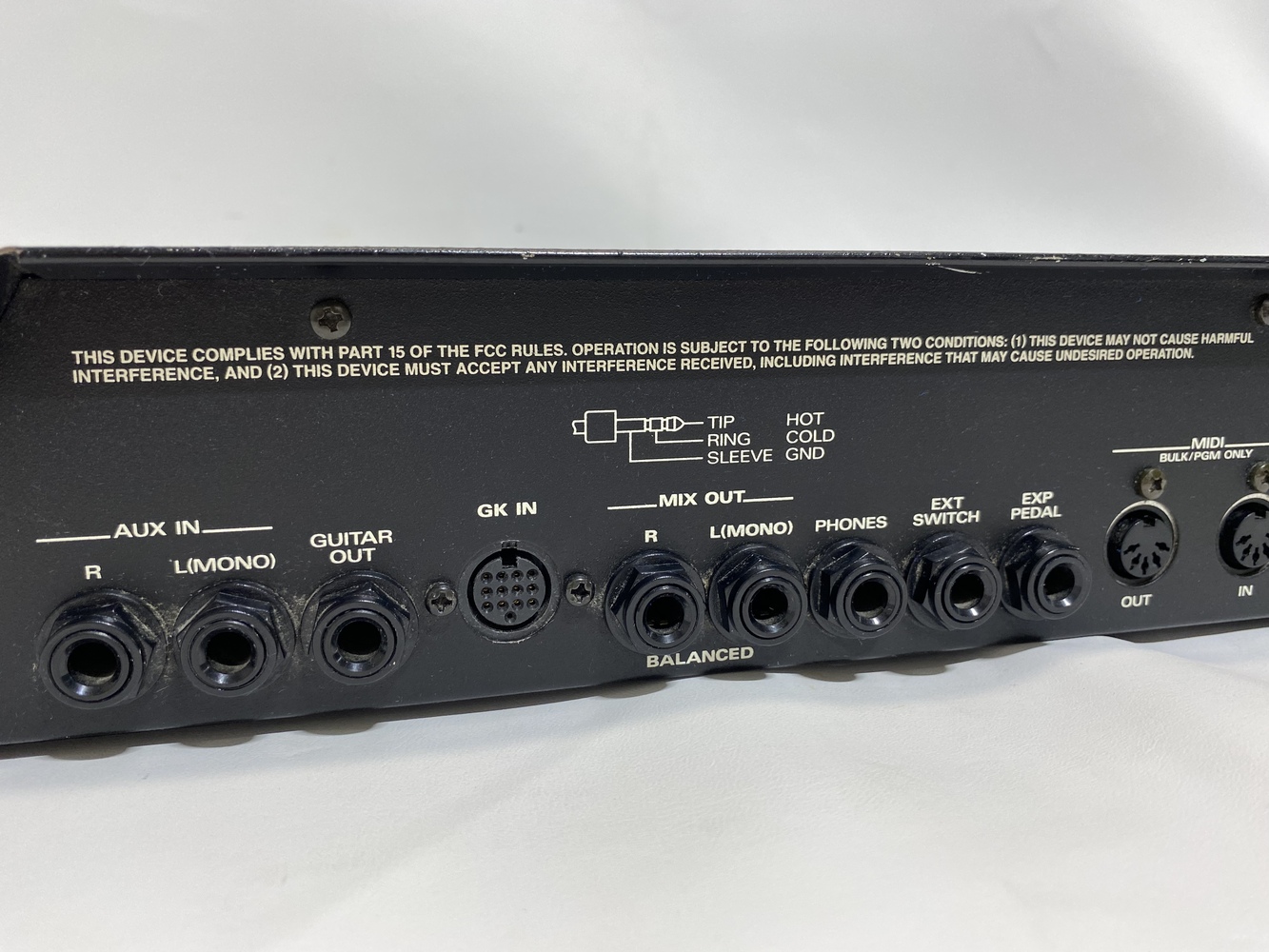

• Output Impedance:
  • Mix Out (balanced): 600 Ω.
  • Mix Out (unbalanced): 300 Ω.
  • Guitar Out: 2 kΩ.
• Nominal Output Level:
  • Mix Out (balanced): -10 dBm.
  • Mix Out (unbalanced): -16 dBm.
  • Guitar Out: -20 dBm.
