Audio specifications

• Frequency Response: 20 Hz – 20 kHz ±0.5 dB (Mic in to Line out), 20 Hz – 20 kHz ±0.2 dB (Line in to Line out)
• S/N Ratio: ≥98 dB (Mic or Line in to Line out)
• Total Harmonic Distortion: ≤0.01% (Mic in to Line out)
• Dynamic Range: ≥120 dB (Line out)

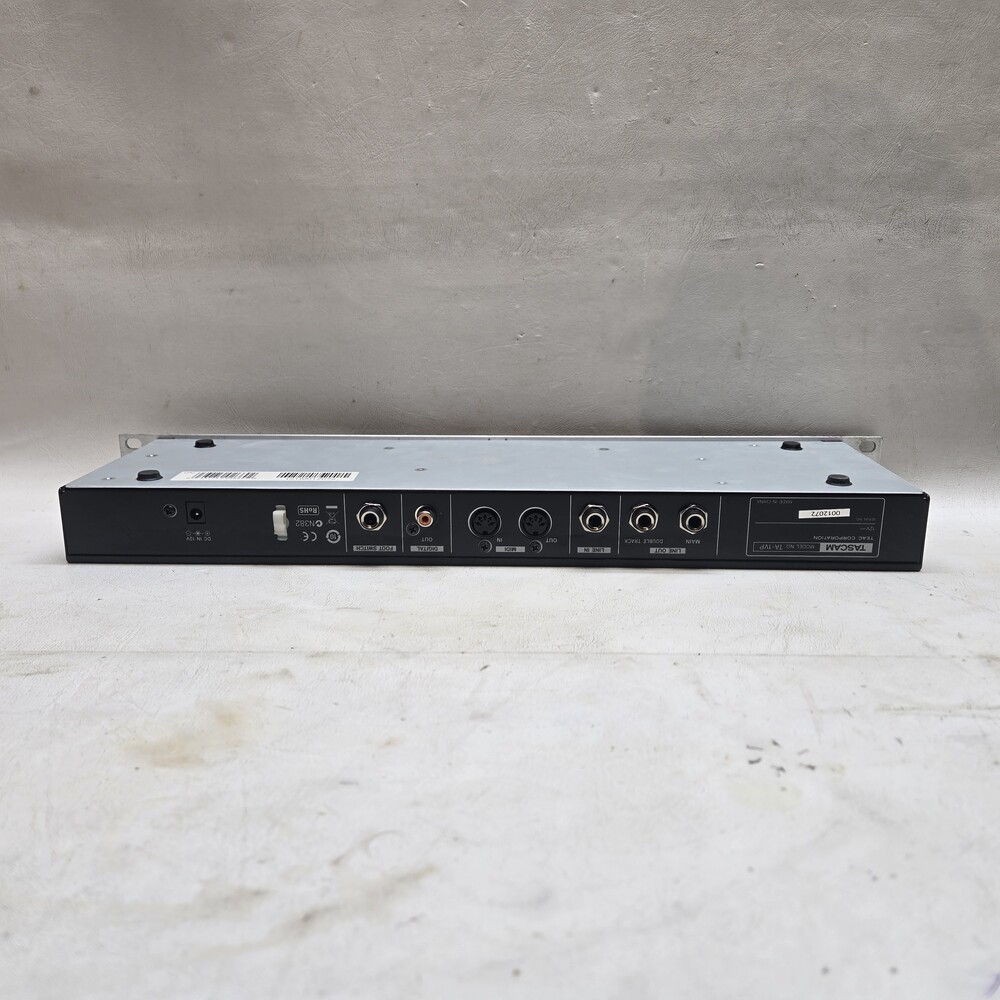

Inputs and outputs

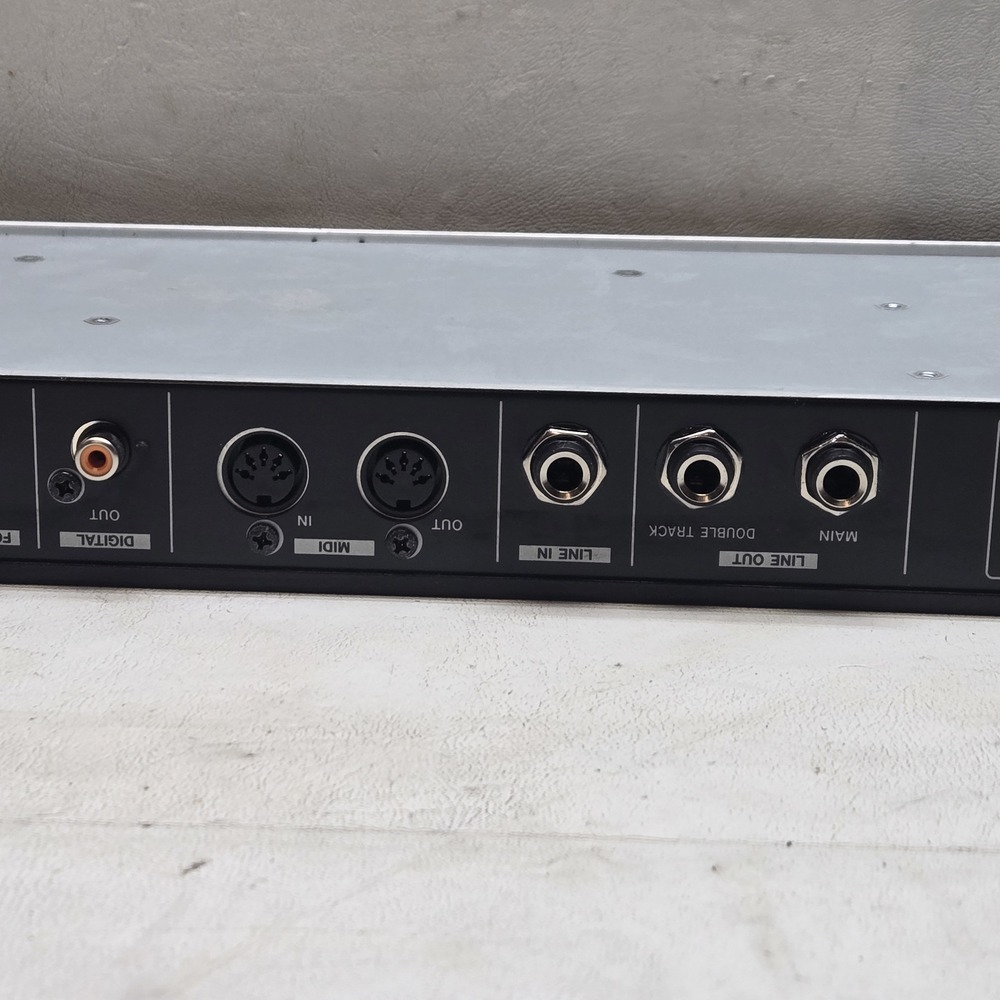

• Analog Audio Inputs: 1 x XLR (mic), 1 x 1/4" TRS phone (line)
• Analog Audio Outputs: 1 x 1/4" TRS phone (line), 1 x 1/4" TRS phone (Double Track)
• Digital Output: 1 x S/PDIF (coaxial)
• MIDI: 1 x 5-pin DIN

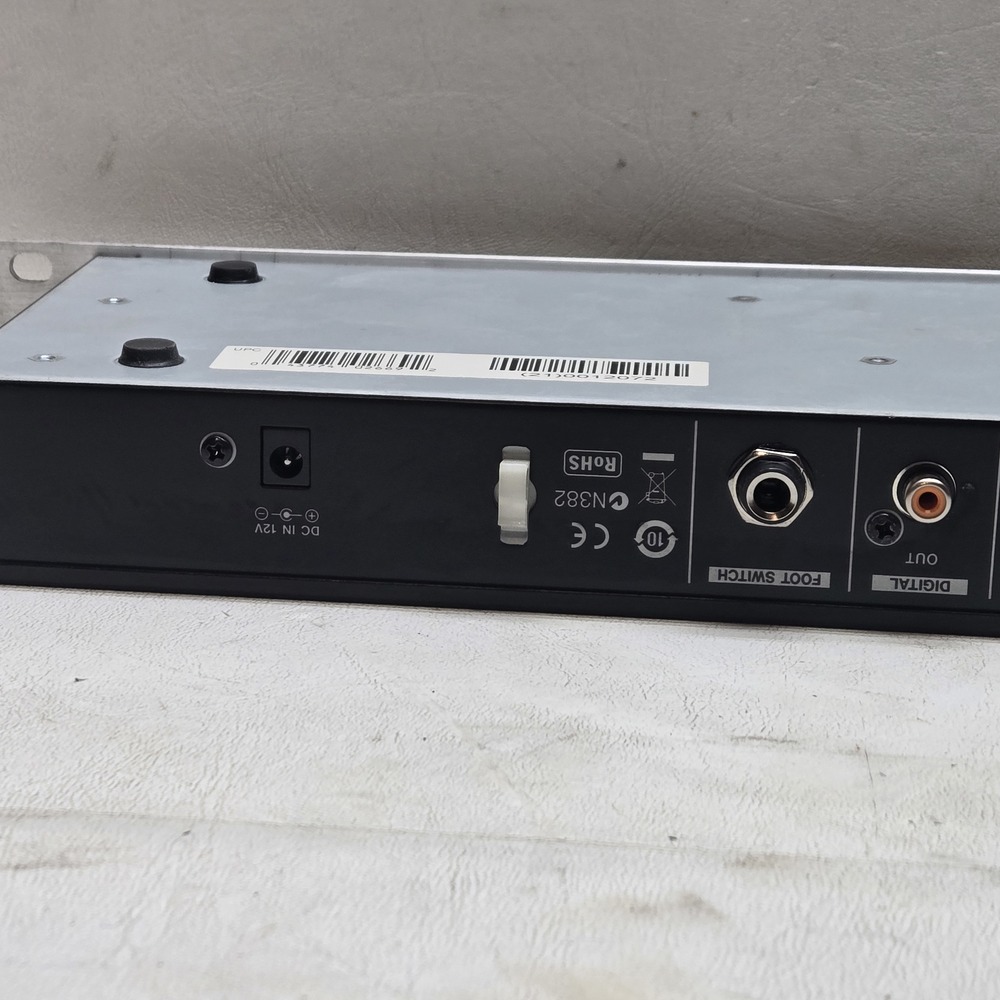

• Pedal Input: 1 x 1/4" TS phone

Power and physical specifications

• Power: AC 100 - 240V, 50/60Hz (using TASCAM PS-P1220E adapter)
• Power Consumption: 4W
• Dimensions: 19.0" x 1.73" x 5.0" (482.6 x 44 x 128.1 mm)
• Weight: 4.4 lbs. (2.0 kg)

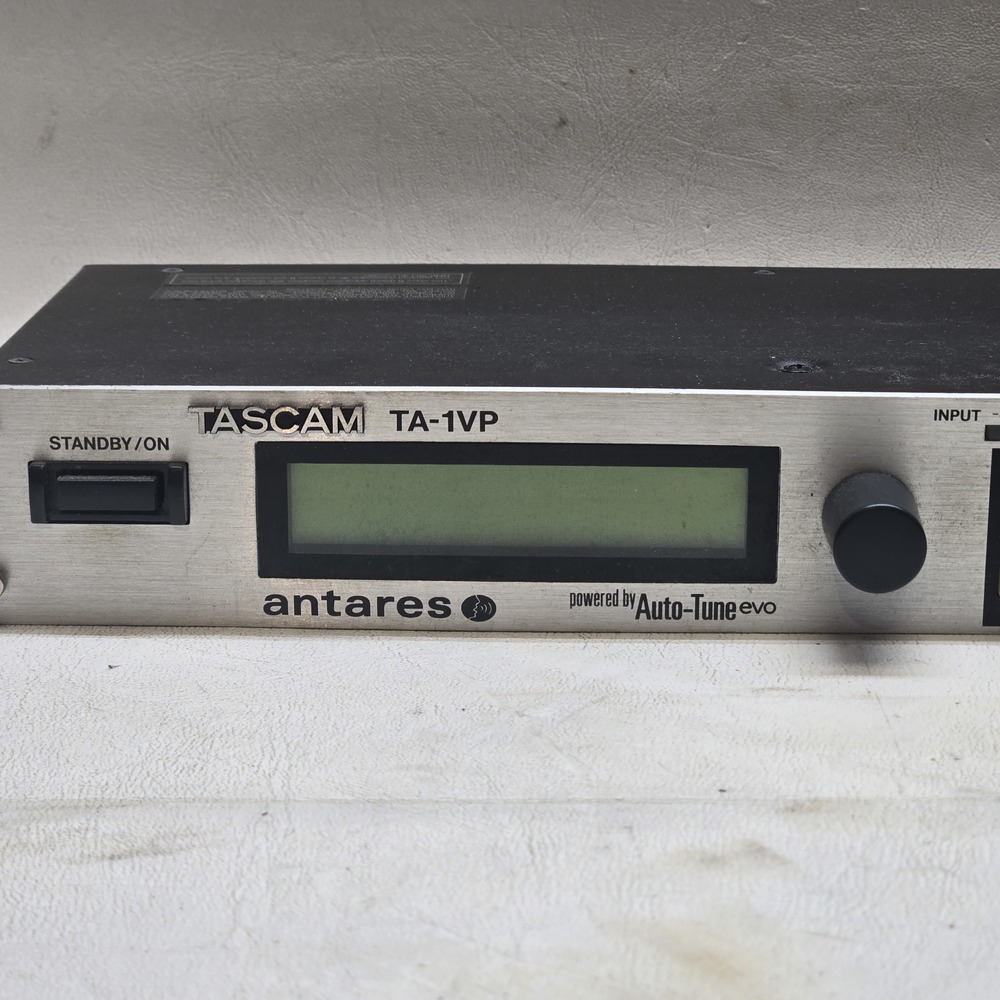

• Display: 2 x 20 character LCD
